Drawing confirmation: TF997-1213 appears against different geometries in the supplied brochure. TF997-1280 and TF997-1315 also share an OEM reference in that document. Confirm the required drawing and machine position before ordering.
Profiled Ceramic Guides

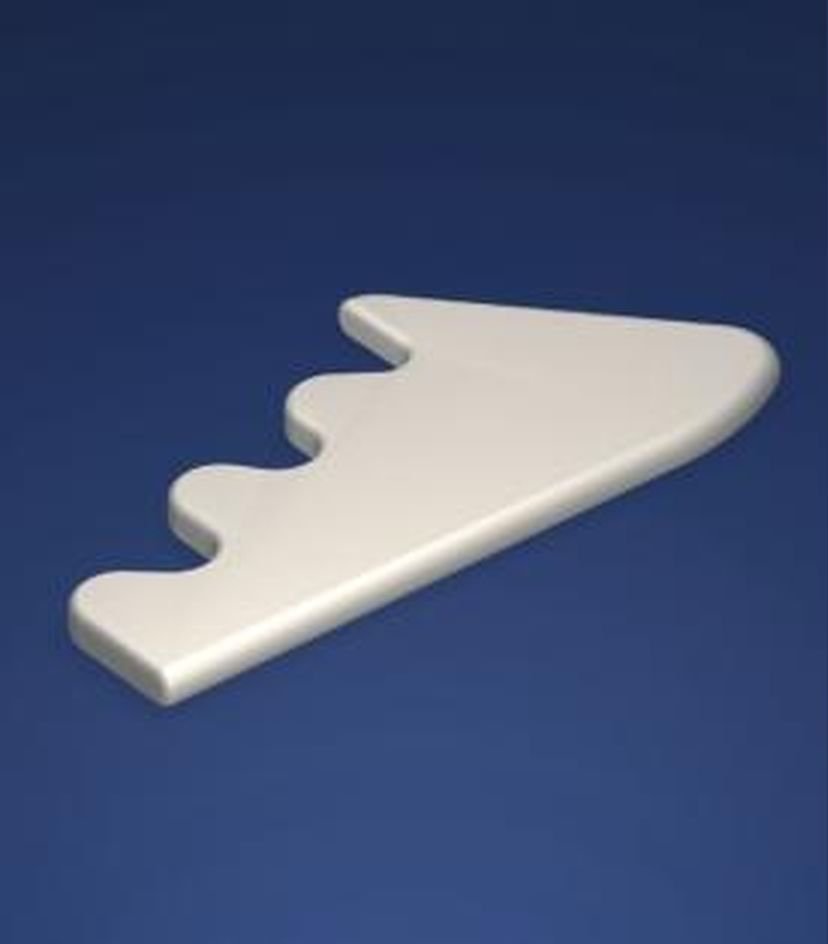

Profiled Ceramic Winder Guides

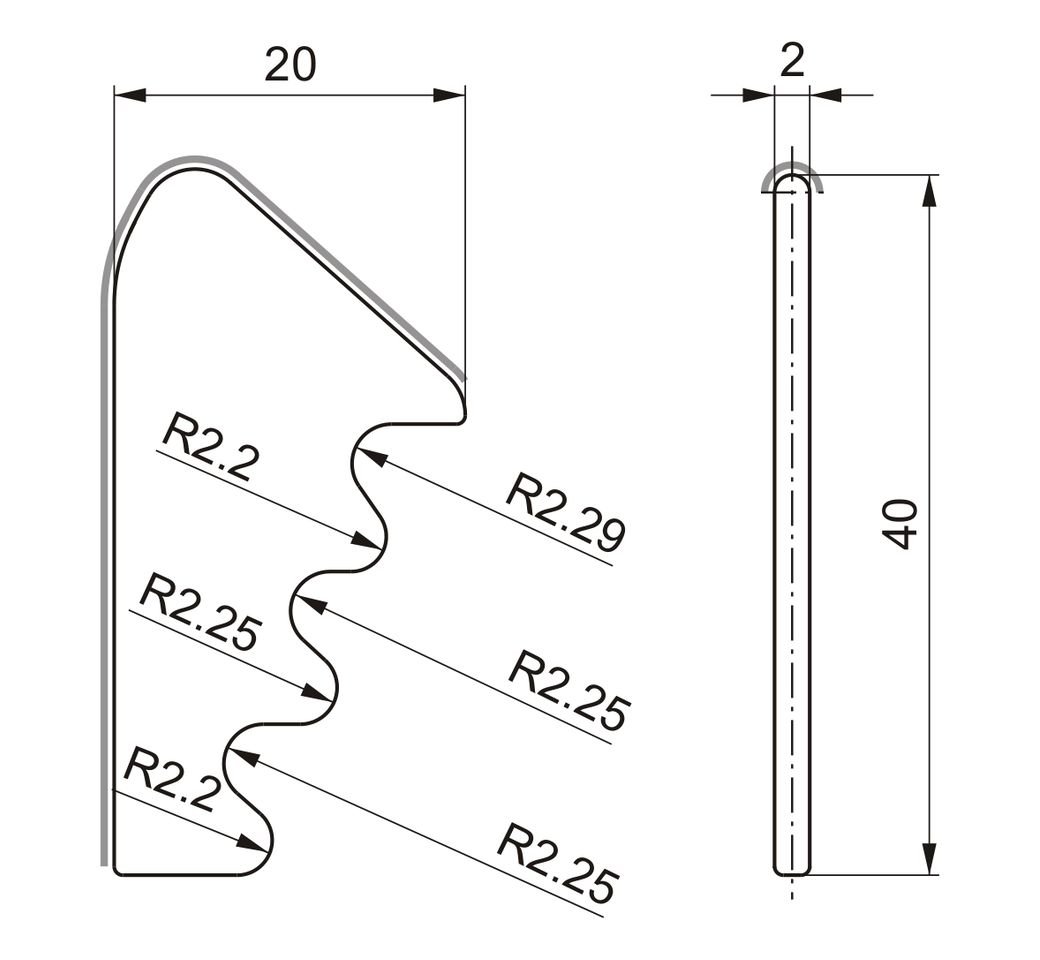

Wear resistant and yarn friendly 99.7% alumina profiles with dimensional drawings.
TF997-128099.7% ALUMINA · Profile Guide · 20 × 40 × 2 |
TF997-131599.7% ALUMINA · Profile Guide · 20 × 40 × 2 | ||||
TF997-150799.7% ALUMINA · Precision Ceramic Guide |
TF997-150899.7% ALUMINA · Precision Ceramic Guide |
Match the complete profile, thickness, radii and mounting position
