Ceramic Component References

Traverse Guides & Assemblies

Drawing based selection of traverse guides & assemblies for synthetic filament machinery.

Traverse guides & assemblies
Match the component to the approved drawing and machine position.
Enquire about this product View Brochure →

Drawing confirmation: TF997-1213 appears against different geometries in the supplied brochure. TF997-1280 and TF997-1315 also share an OEM reference in that document. Confirm the required drawing and machine position before ordering.

Take up Winder Components

Barmag Take up Winder Components

TF-1476 assembly with associated 99.7% alumina guide references.

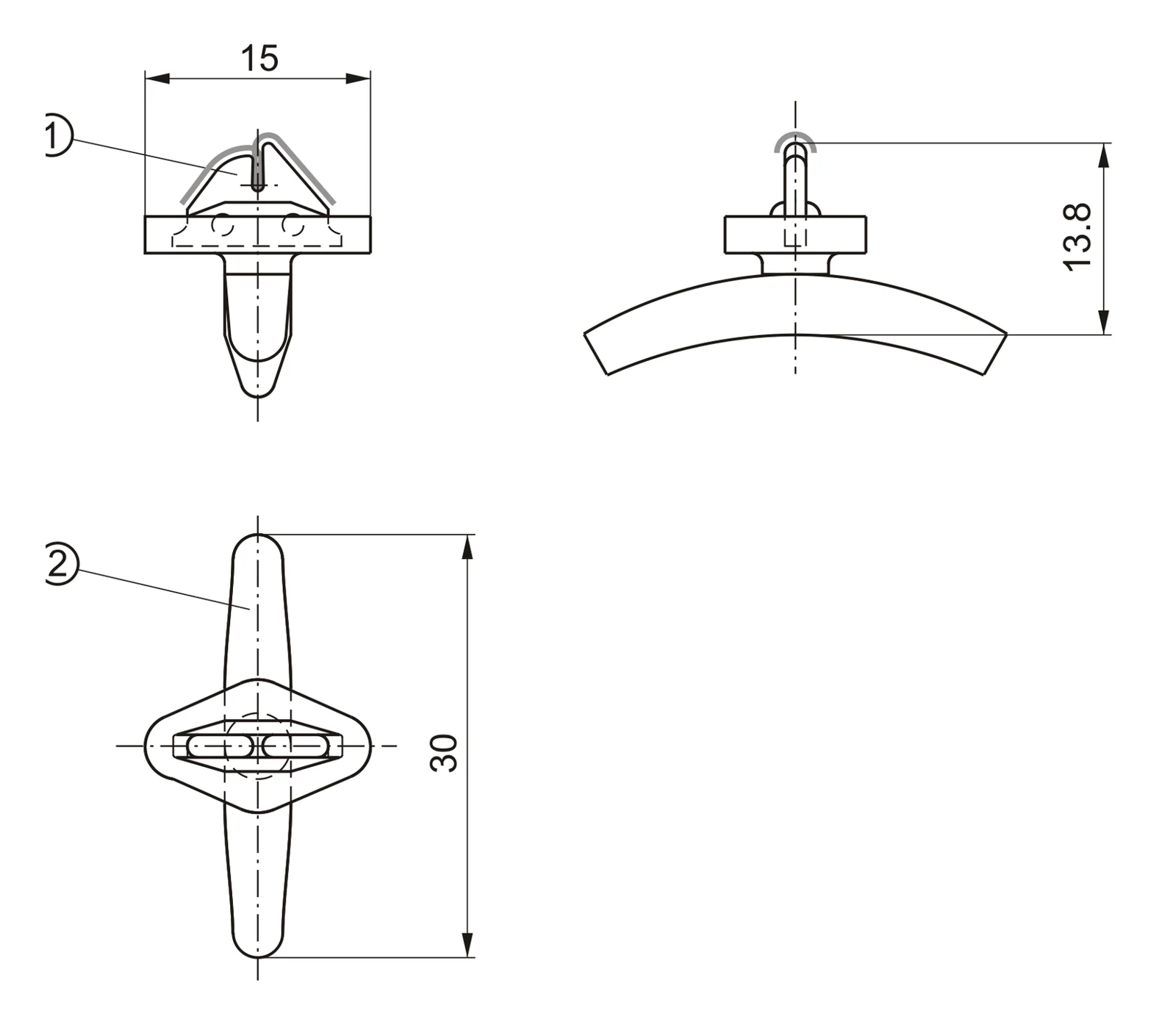

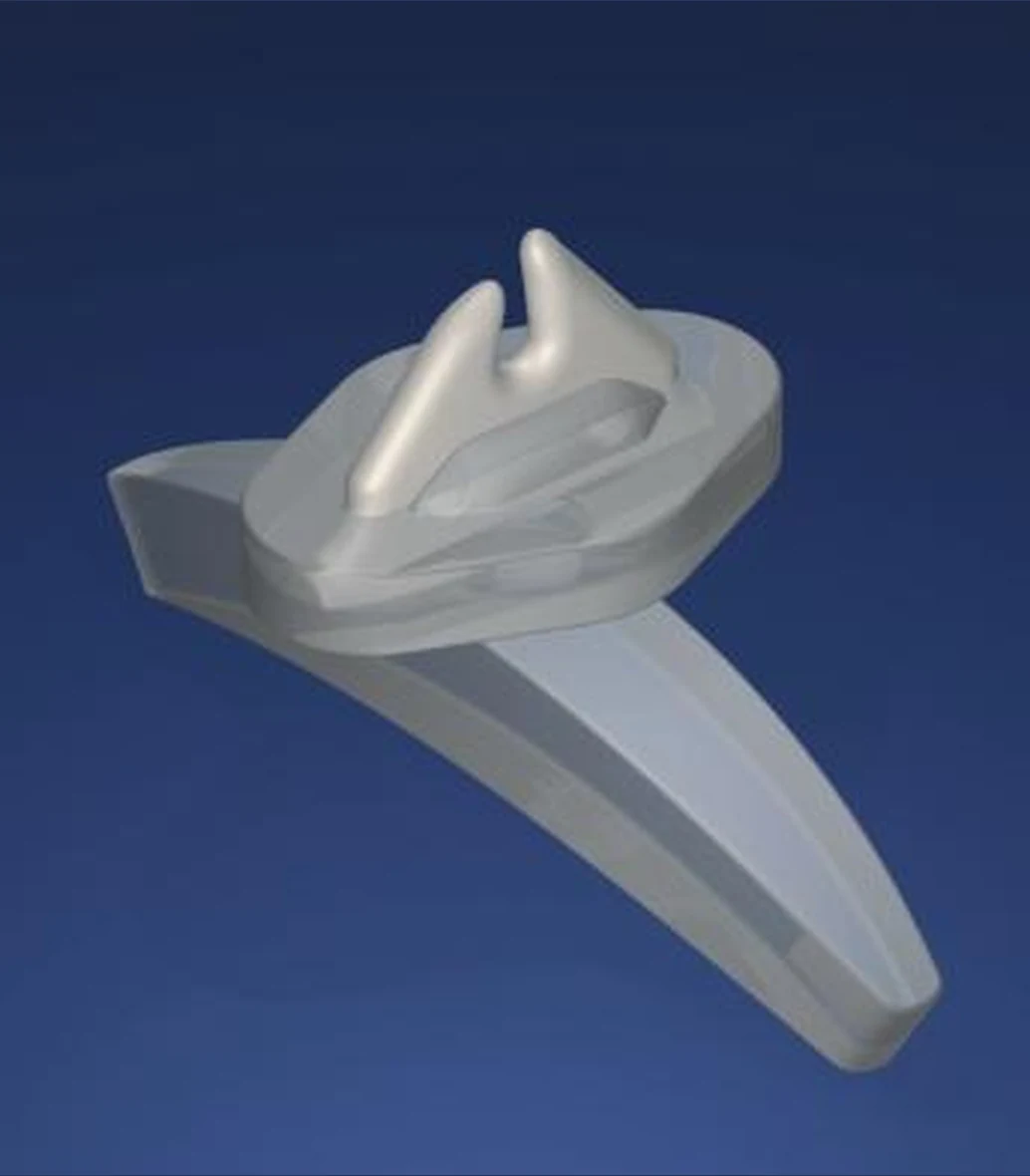

TF-1476 MATERIAL 99.7% ALUMINA BARMAG REF. 4674878 (3220866) Take Up Winder Guide · TF997-1213 Plastic Shoe · 1111-T-1008

TF-1476

Material 99.7% Alumina

Barmag Ref. 4674878 (3220866)

Take Up Winder Guide · TF997-1213

Plastic Shoe · 1111-T-1008

TF-1476 MATERIAL 99.7% ALUMINA BARMAG REF. 4674878 (3220866) Take Up Winder Guide · TF997-1213 Plastic Shoe · 1111-T-1008
TF997-1315 BARMAG REF. C239344 99.7% ALUMINA · Profile Guide · 20 × 40 × 2
TF997-1315 BARMAG REF. C239344 99.7% ALUMINA · Profile Guide · 20 × 40 × 2

TF997-1315

Barmag Ref. C239344

99.7% ALUMINA · Profile Guide · 20 × 40 × 2

TF-1476 MATERIAL 99.7% ALUMINA BARMAG REF. 4674878 (3220866) Take Up Winder Guide · TF997-1213 Plastic Shoe · 1111-T-1008

TF-1476

Material 99.7% Alumina

Barmag Ref. 4674878 (3220866)

Take Up Winder Guide · TF997-1213

Plastic Shoe · 1111-T-1008

TF-1476 MATERIAL 99.7% ALUMINA BARMAG REF. 4674878 (3220866) Take Up Winder Guide · TF997-1213 Plastic Shoe · 1111-T-1008

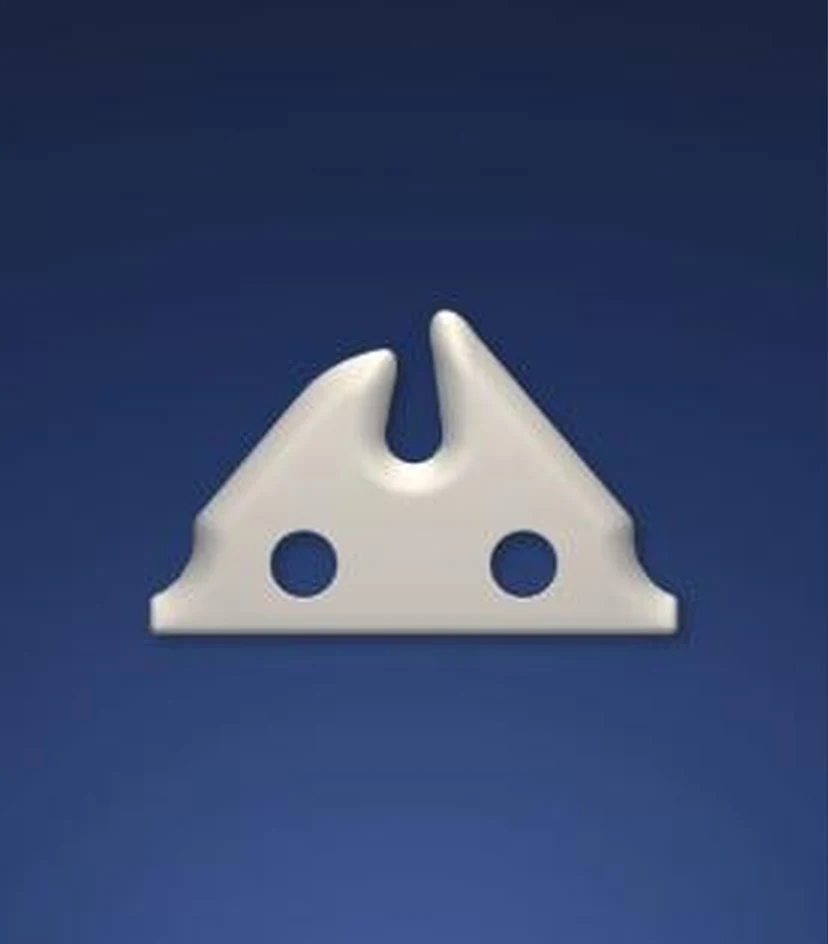

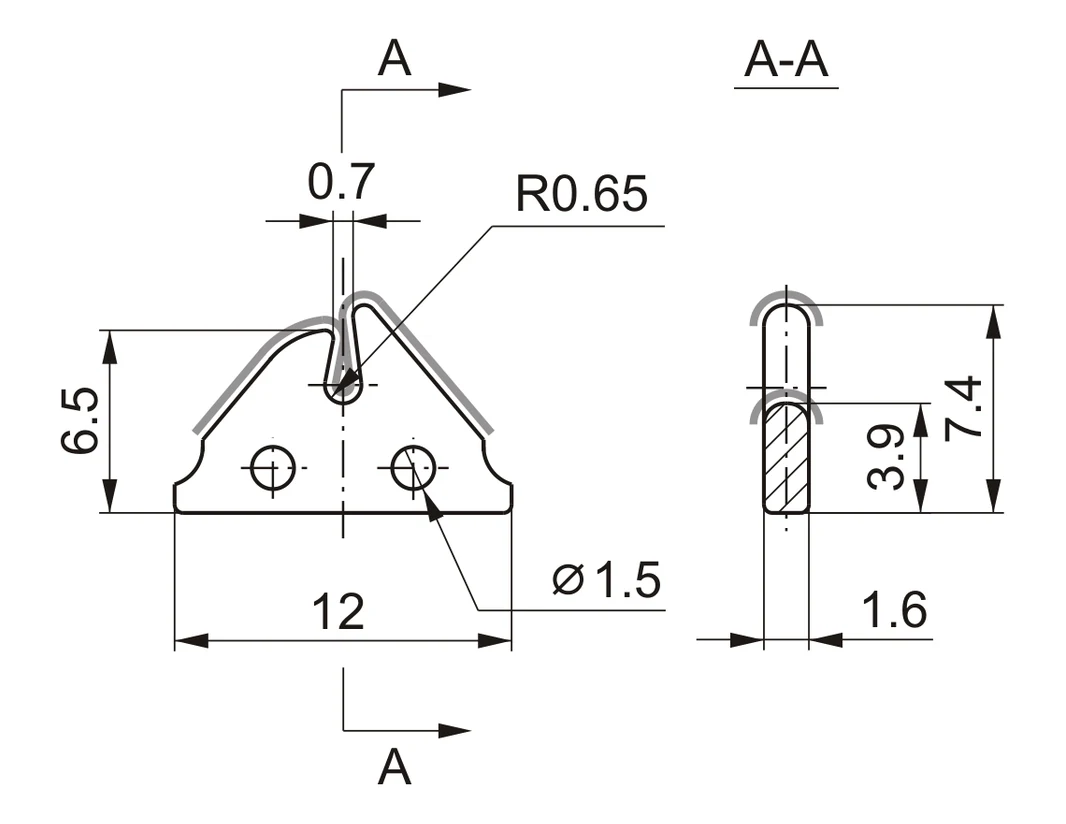

TF997-1213 MATCHING TAKE UP WINDER GUIDE 99.7% ALUMINA · Precision Ceramic Insert
TF997-1213 MATCHING TAKE UP WINDER GUIDE 99.7% ALUMINA · Precision Ceramic Insert

TF997-1213

Matching Take up Winder Guide

99.7% ALUMINA · Precision Ceramic Insert

Take up Winder Assemblies

Take up Winder Guide Assemblies - Series I

High purity and yarn friendly ceramic guide assemblies with matching winder and nylon shoe references.

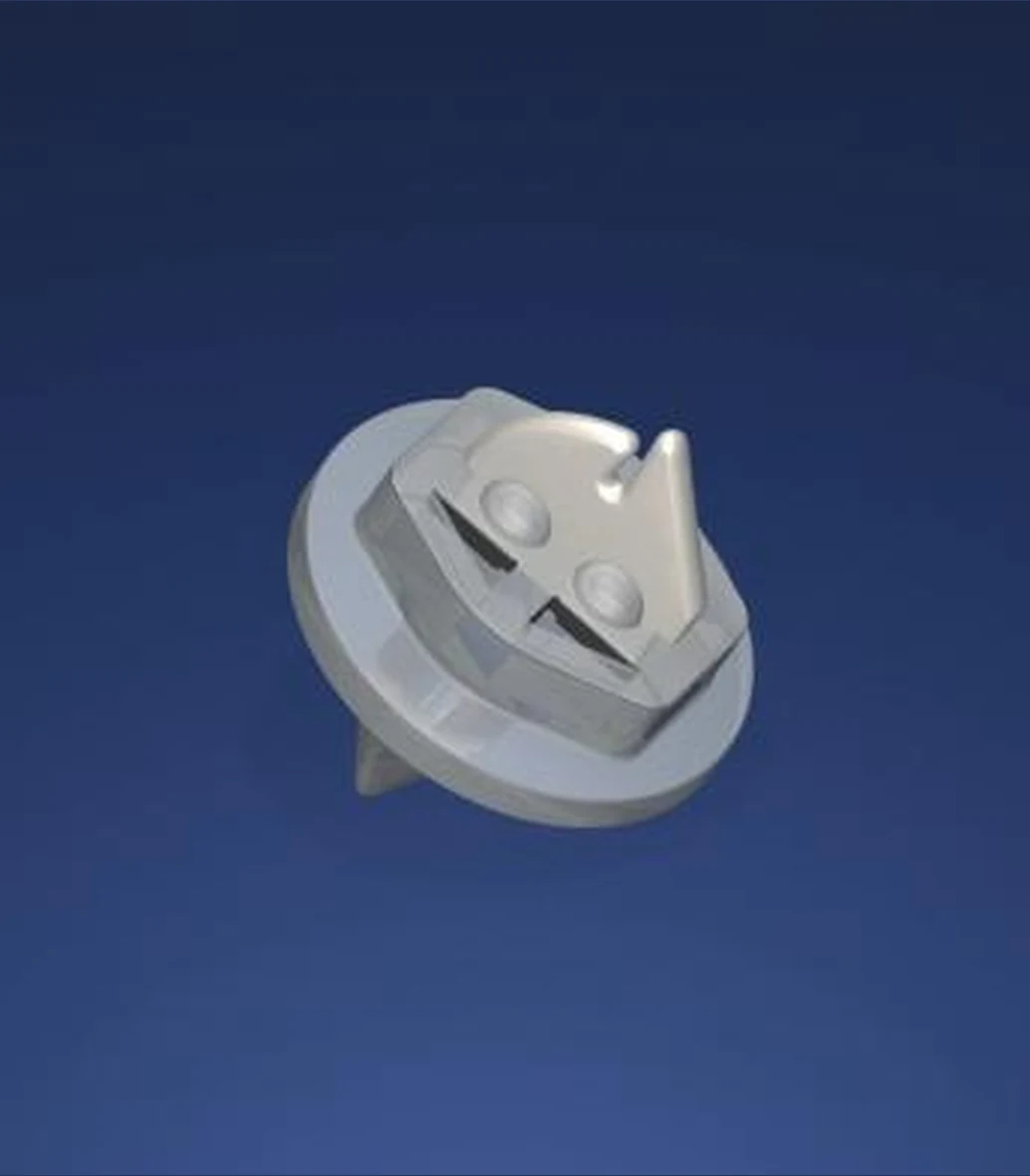

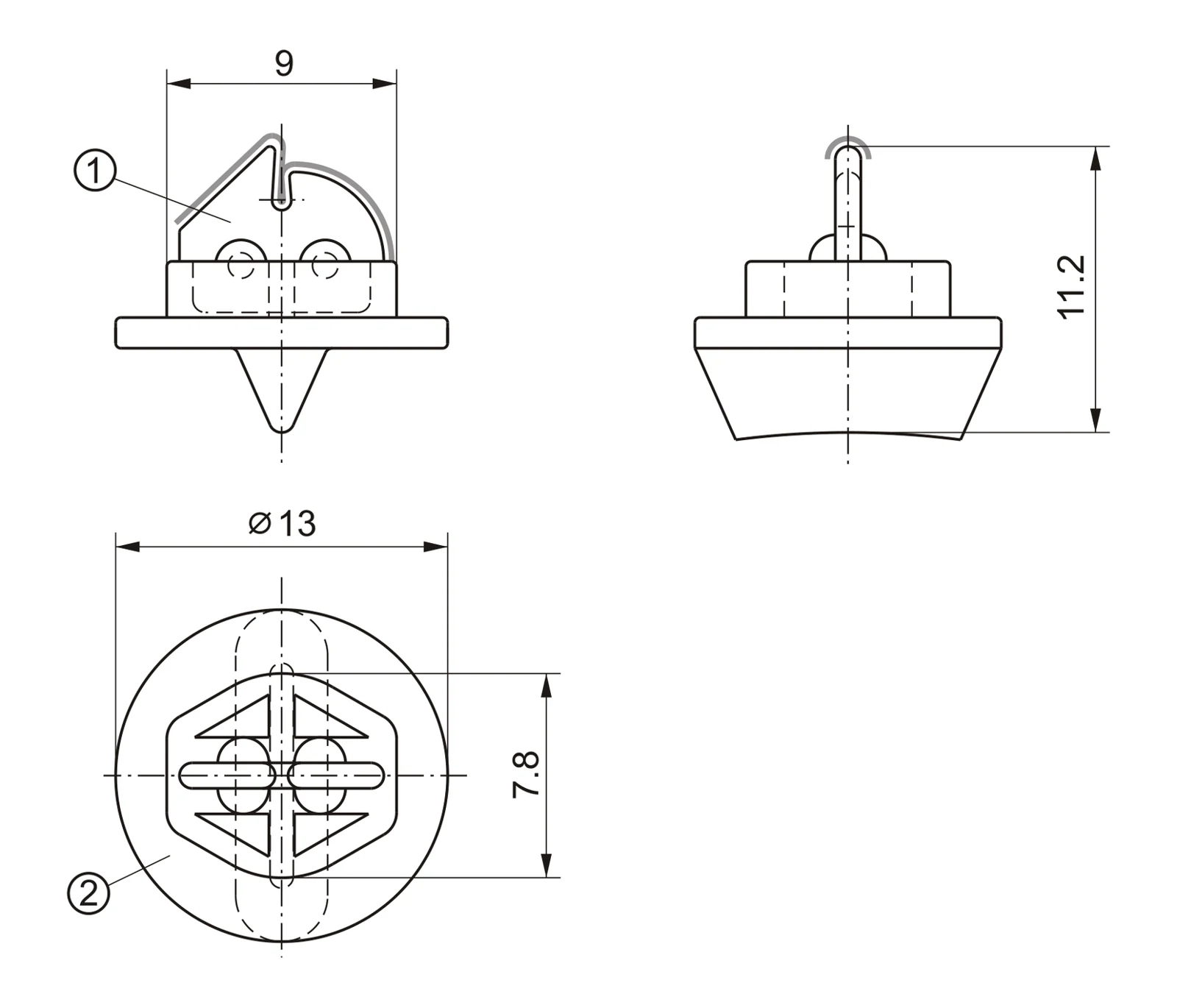

TF-1478 MATERIAL Al₂O₃ · 99.7% TAKE UP WINDER TF997-1307 PLASTIC SHOE · NYLON 1111-T-1010 SIZE (mm) W 9 · H 11.2 · Ø13 · GUIDE 7.8
TF-1478 MATERIAL Al₂O₃ · 99.7% TAKE UP WINDER TF997-1307 PLASTIC SHOE · NYLON 1111-T-1010 SIZE (mm) W 9 · H 11.2 · Ø13 · GUIDE 7.8

TF-1478

MATERIAL Al₂O₃ · 99.7%

Take up Winder

TF997-1307

Plastic Shoe · Nylon

1111-T-1010

SIZE (mm)

W 9 · H 11.2 · Ø13 · Guide 7.8

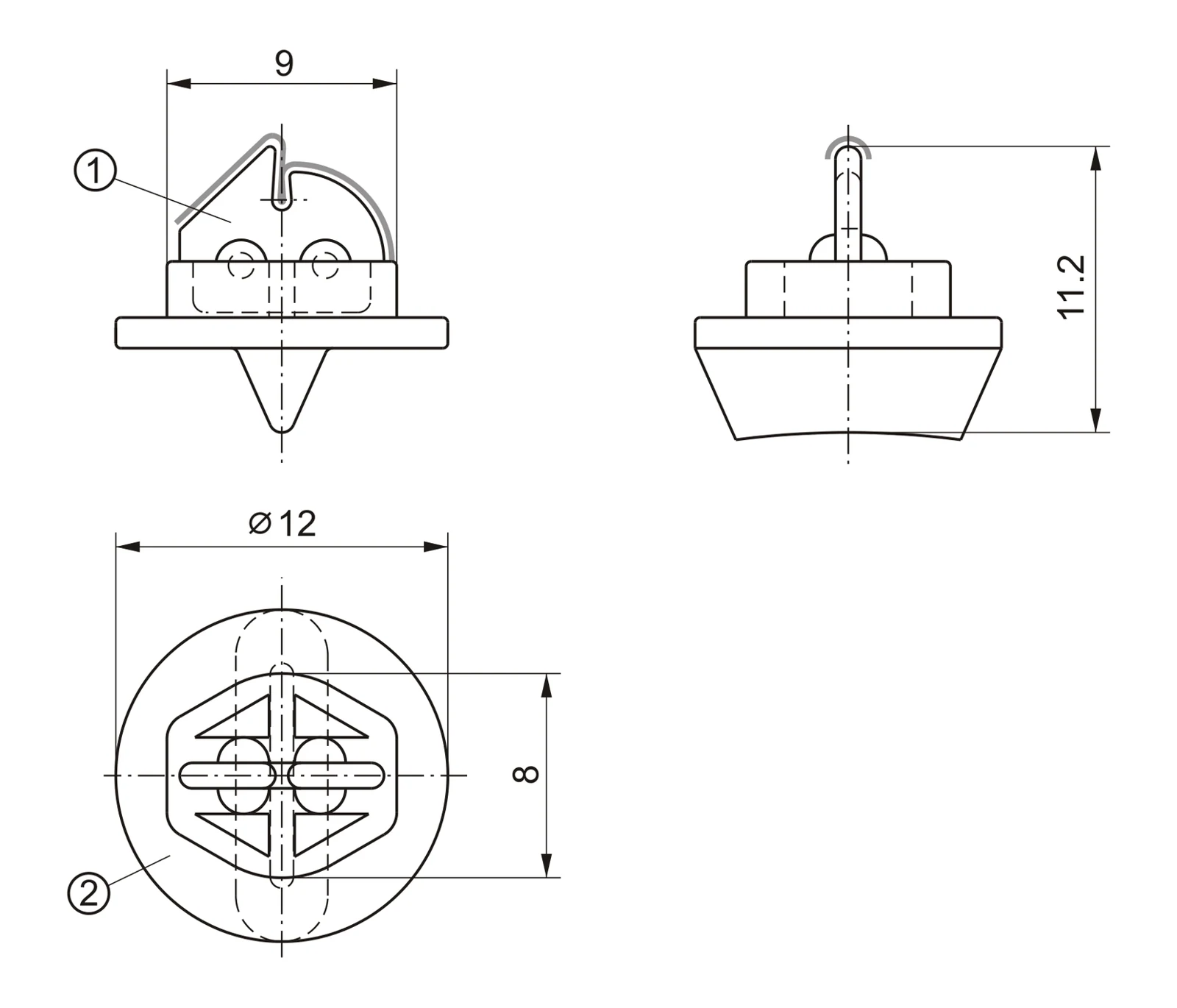

TF-1605 MATERIAL Al₂O₃ · 99.7% TAKE UP WINDER TF997-1307 PLASTIC SHOE · NYLON 1111-T-1058 SIZE (mm) W 9 · H 11.2 · Ø12 · GUIDE 8
TF-1605 MATERIAL Al₂O₃ · 99.7% TAKE UP WINDER TF997-1307 PLASTIC SHOE · NYLON 1111-T-1058 SIZE (mm) W 9 · H 11.2 · Ø12 · GUIDE 8

TF-1605

MATERIAL Al₂O₃ · 99.7%

Take up Winder

TF997-1307

Plastic Shoe · Nylon

1111-T-1058

SIZE (mm)

W 9 · H 11.2 · Ø12 · Guide 8

Dimensions in millimetres · Drawings not to scale · Match shoe and guide as a complete configuration

Take up Winder Assemblies

Take up Winder Guide Assemblies - Series Ii

Alternative assembly geometries for position specific replacement.

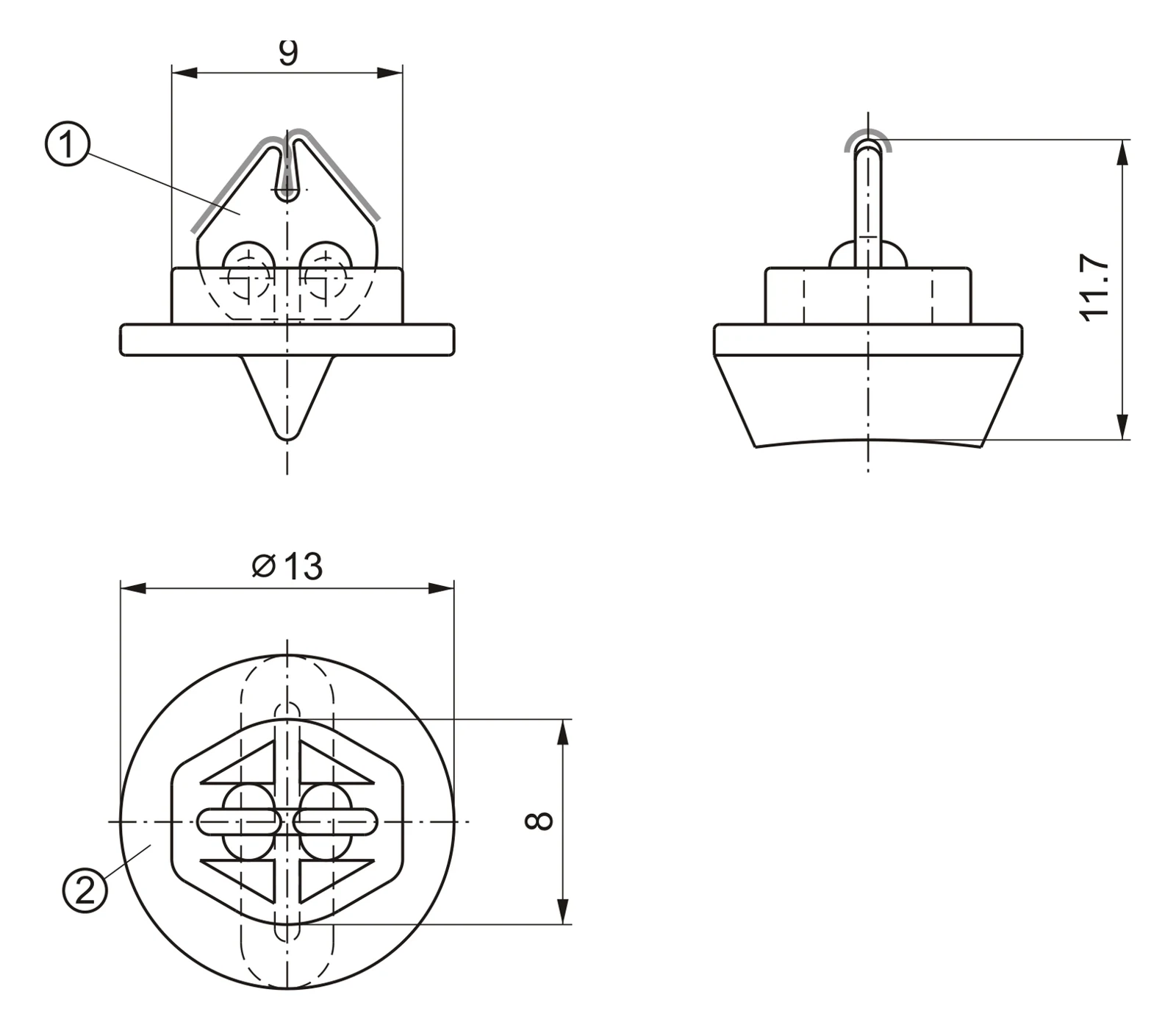

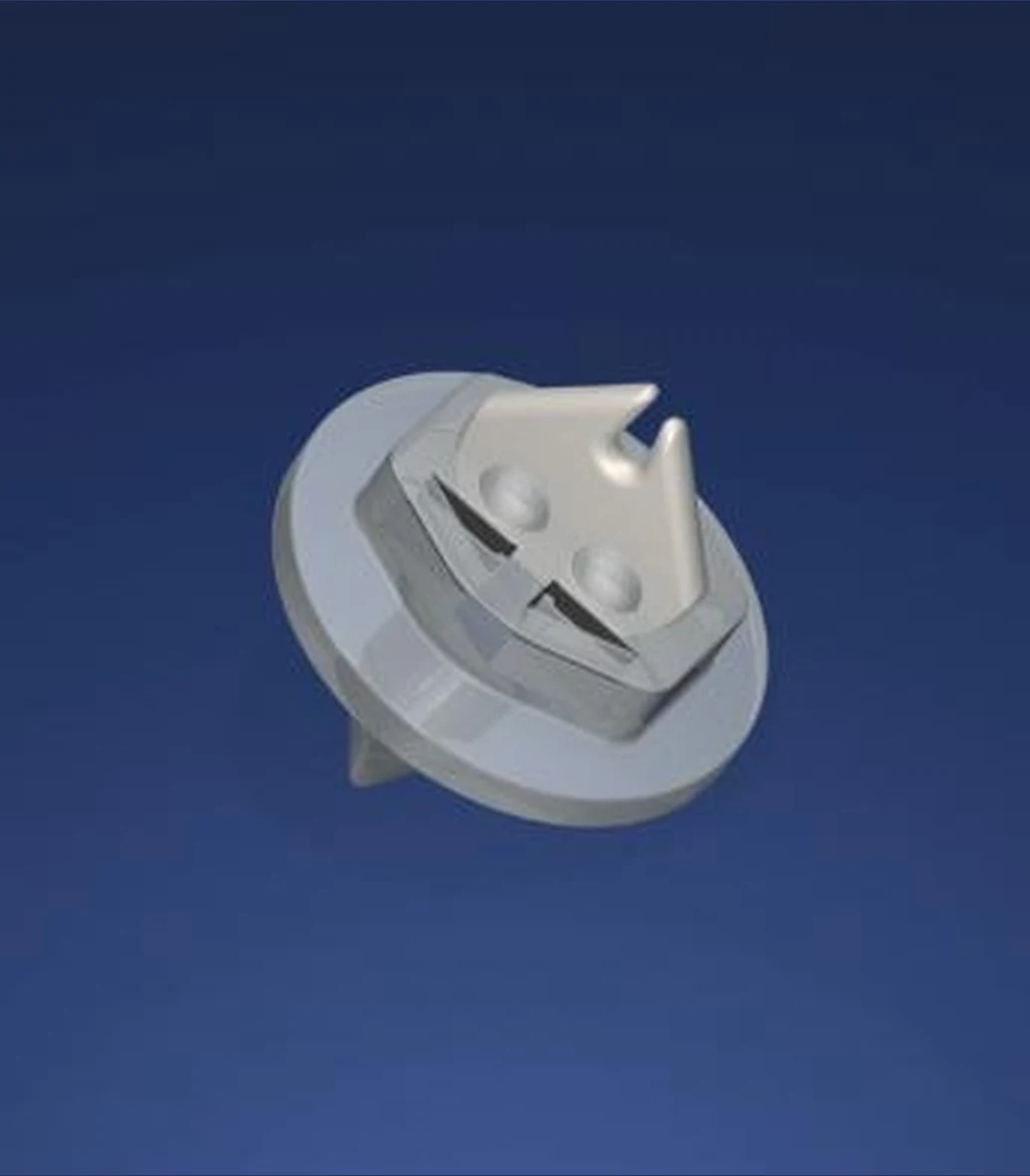

TF-1557 MATERIAL Al₂O₃ · 99.7% TAKE UP WINDER TF997-1209 PLASTIC SHOE · NYLON 1111-T-1045 SIZE (mm) W 9 · H 11.7 · Ø13 · GUIDE 8
TF-1557 MATERIAL Al₂O₃ · 99.7% TAKE UP WINDER TF997-1209 PLASTIC SHOE · NYLON 1111-T-1045 SIZE (mm) W 9 · H 11.7 · Ø13 · GUIDE 8

TF-1557

MATERIAL Al₂O₃ · 99.7%

Take up Winder

TF997-1209

Plastic Shoe · Nylon

1111-T-1045

SIZE (mm)

W 9 · H 11.7 · Ø13 · Guide 8

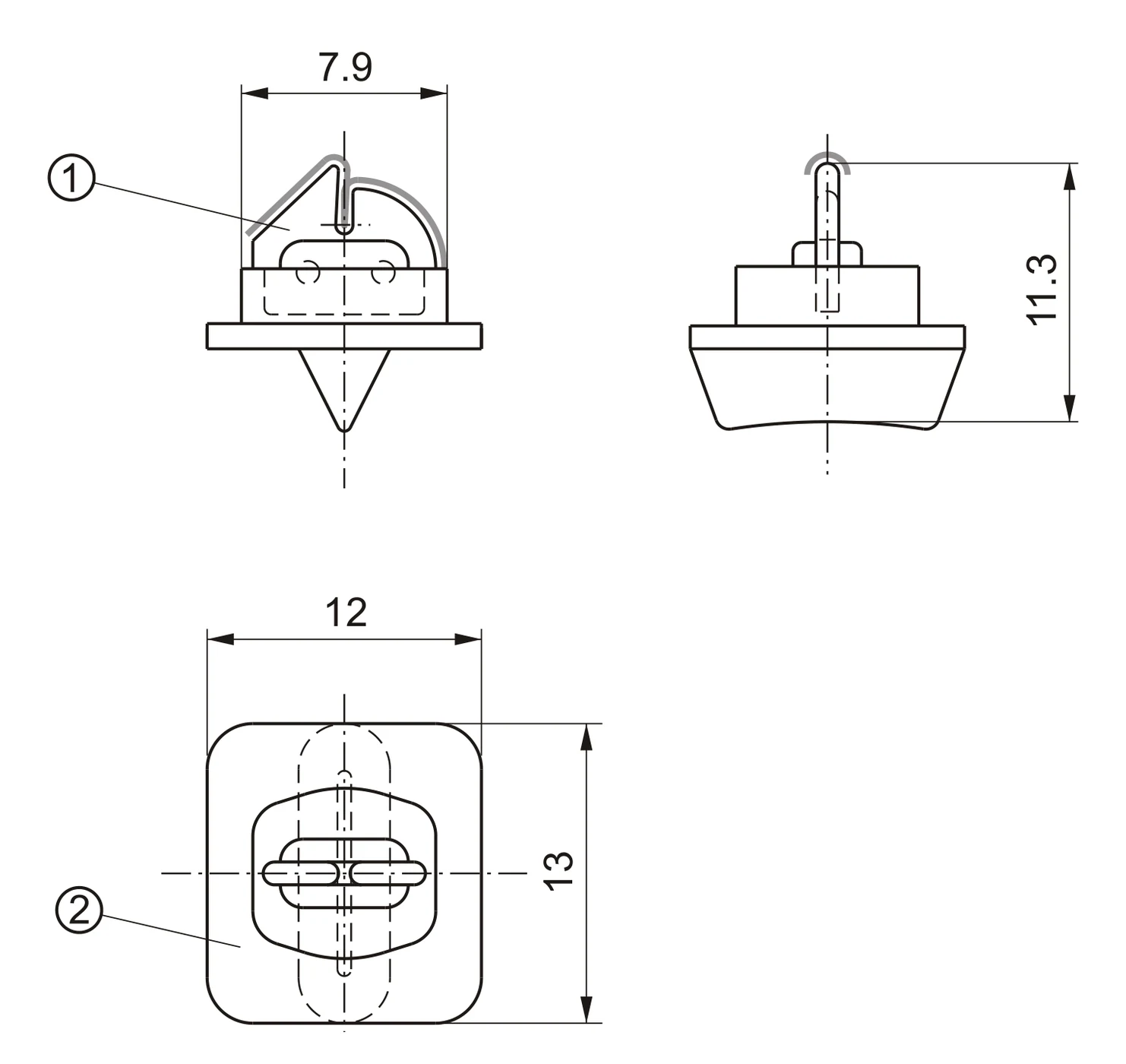

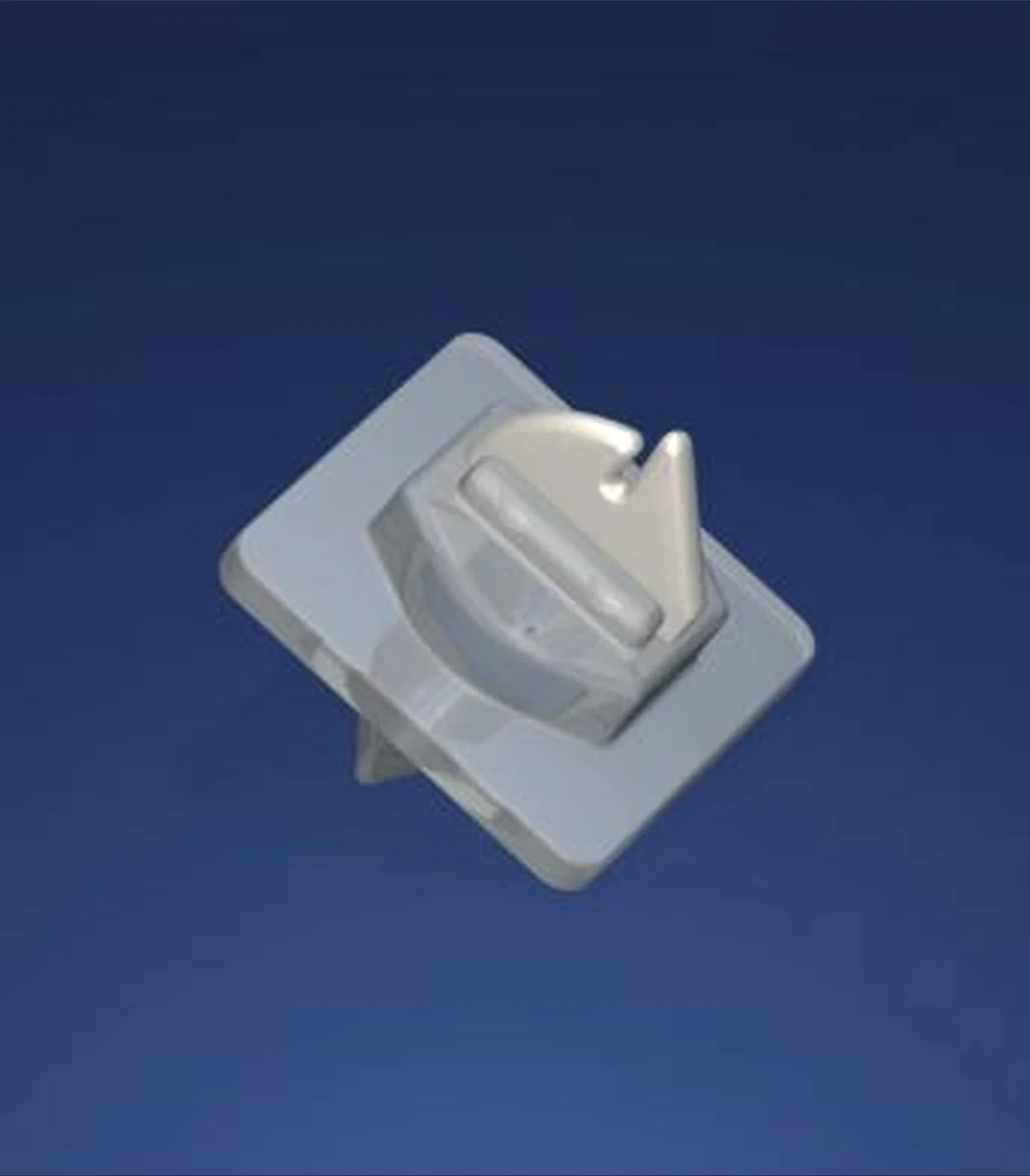

TF-1477 MATERIAL Al₂O₃ · 99.7% TAKE UP WINDER TF997-1307 PLASTIC SHOE · NYLON 1111-T-1009 SIZE (mm) W 7.9 · H 11.3 · BASE 12 × 13
TF-1477 MATERIAL Al₂O₃ · 99.7% TAKE UP WINDER TF997-1307 PLASTIC SHOE · NYLON 1111-T-1009 SIZE (mm) W 7.9 · H 11.3 · BASE 12 × 13

TF-1477

MATERIAL Al₂O₃ · 99.7%

Take up Winder

TF997-1307

Plastic Shoe · Nylon

1111-T-1009

SIZE (mm)

W 7.9 · H 11.3 · Base 12 × 13

Confirm base geometry, mounting pattern, ceramic profile and guide orientation

Assembly Matching

Assembly & Matching Ceramic Inserts

Selection reference for winder assembly TF-1476 and associated guide geometries.

TF-1476 99.7% ALUMINA · TAKE UP WINDER TF997-1213 · PLASTIC SHOE 1111-T-1008

TF-1476

99.7% Alumina · Take up Winder

TF997-1213 · Plastic Shoe 1111-T-1008

TF-1476 99.7% ALUMINA · TAKE UP WINDER TF997-1213 · PLASTIC SHOE 1111-T-1008

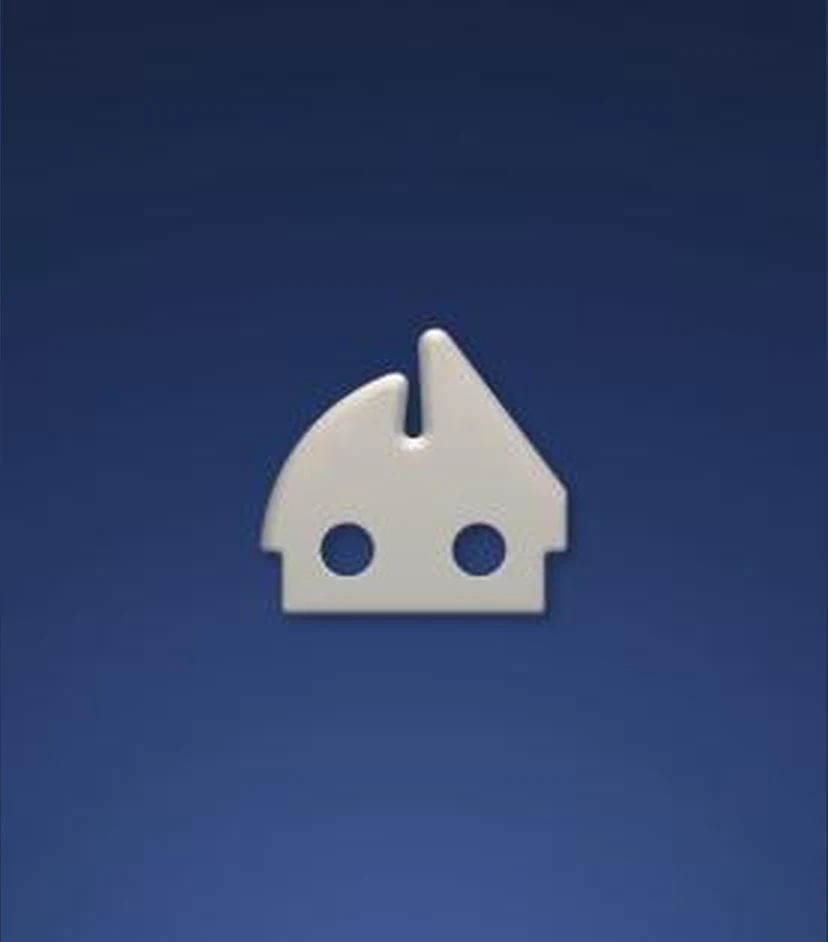

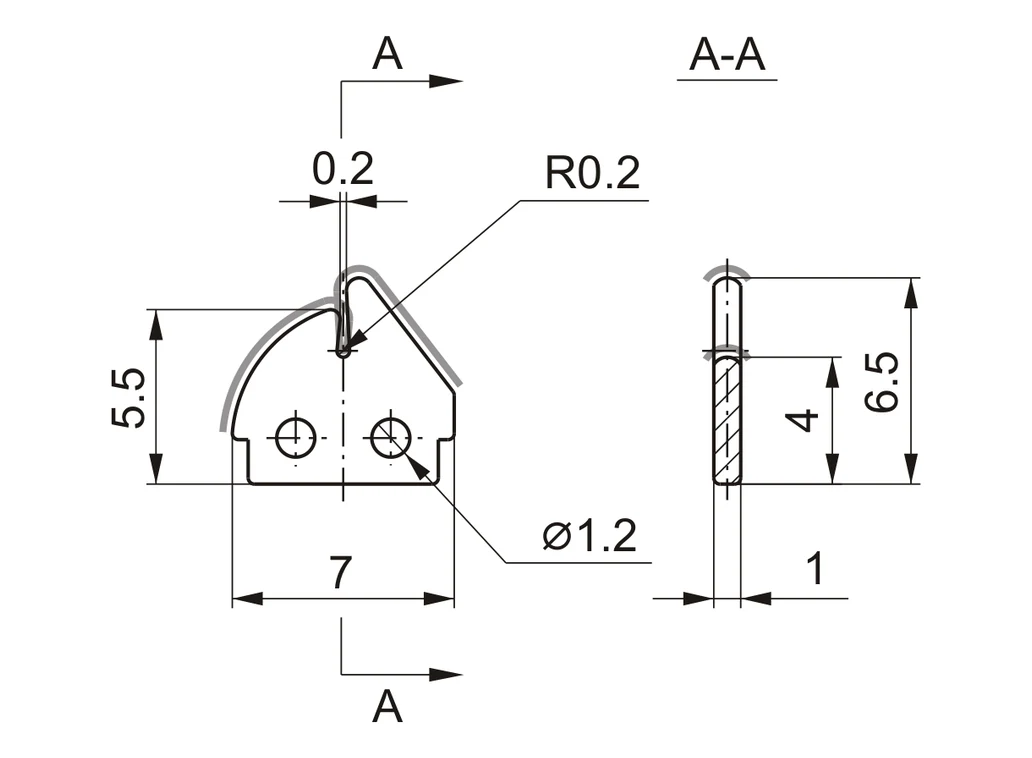

TF997-1307 99.7% ALUMINA · Precision Ceramic Guide
TF997-1307 99.7% ALUMINA · Precision Ceramic Guide

TF997-1307

99.7% ALUMINA · Precision Ceramic Guide

TF997-1209 99.7% ALUMINA · Precision Ceramic Guide
TF997-1209 99.7% ALUMINA · Precision Ceramic Guide

TF997-1209

99.7% ALUMINA · Precision Ceramic Guide

Traverse Components

Bi - Rotor Traverse

Controlled yarn transfer through application matched rotor geometry.

01

Counter Rotating Wing Action

Opposed rotor wings transfer the yarn at each reversal.

02

Wear Critical Working Edges

Guide edge condition supports consistent yarn transfer.

03

Application Matched Selection

Confirm model, position, direction and mounting pattern.

04

Identification Support

Use clear photographs, existing reference and machine position.

Representative Models

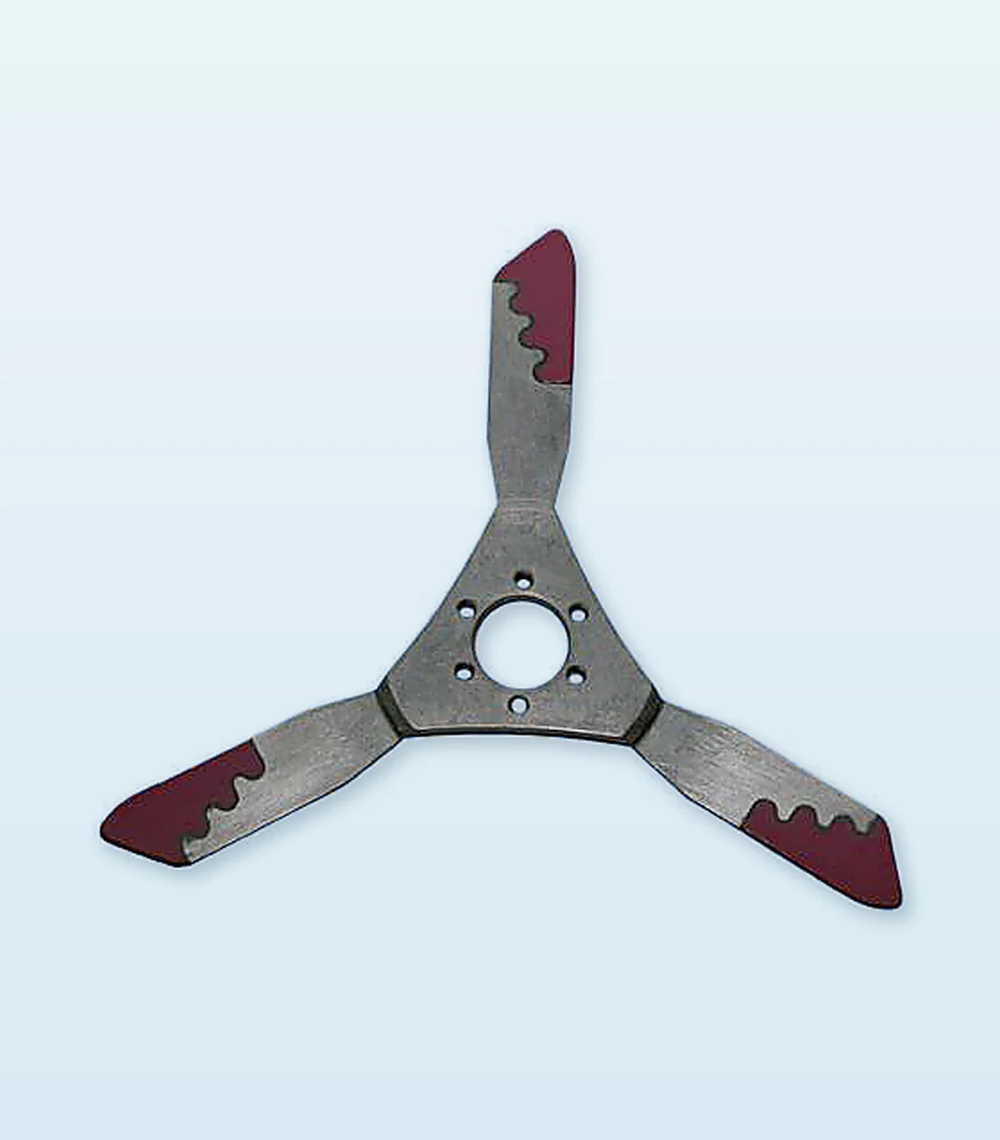

TF-1011

TF-1011

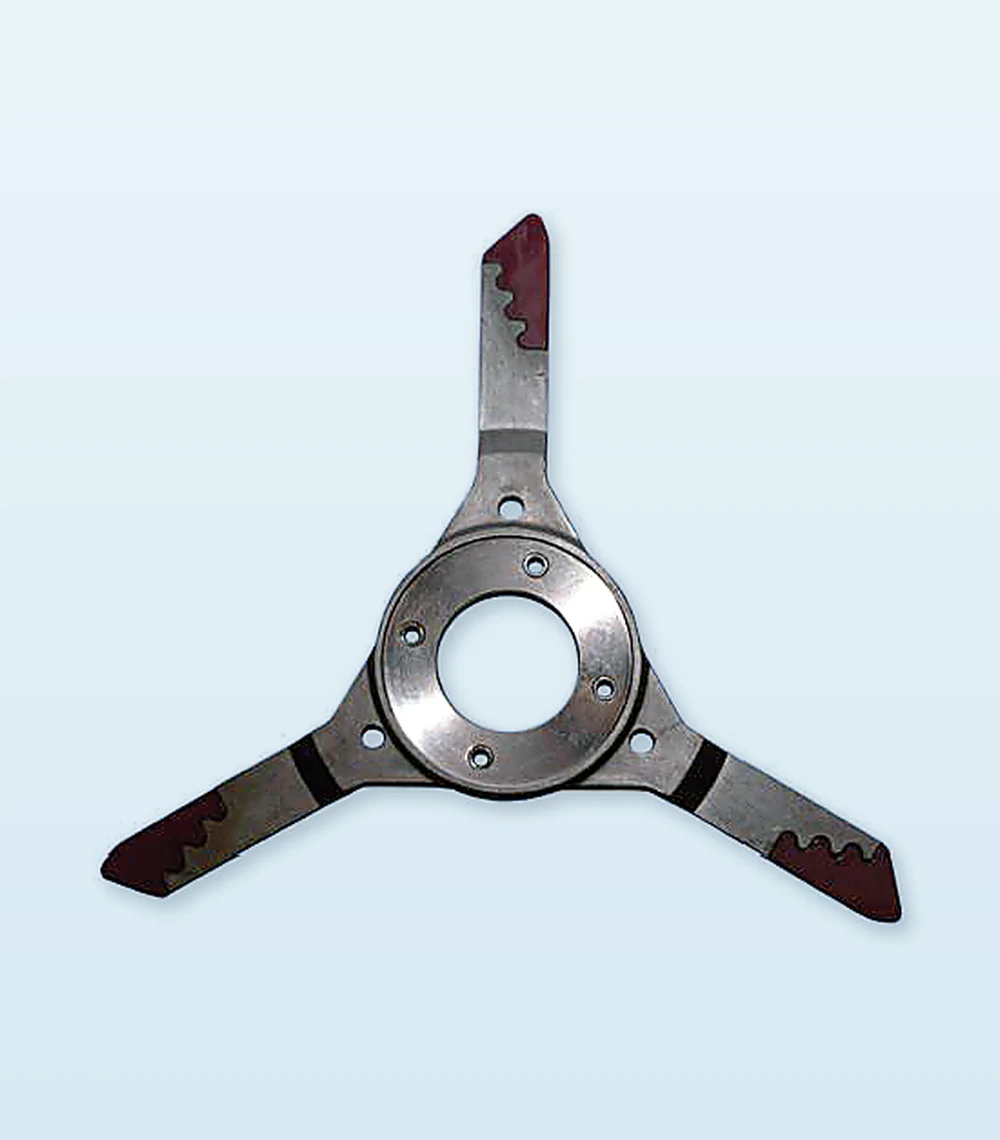

TF-1015

TF-1015

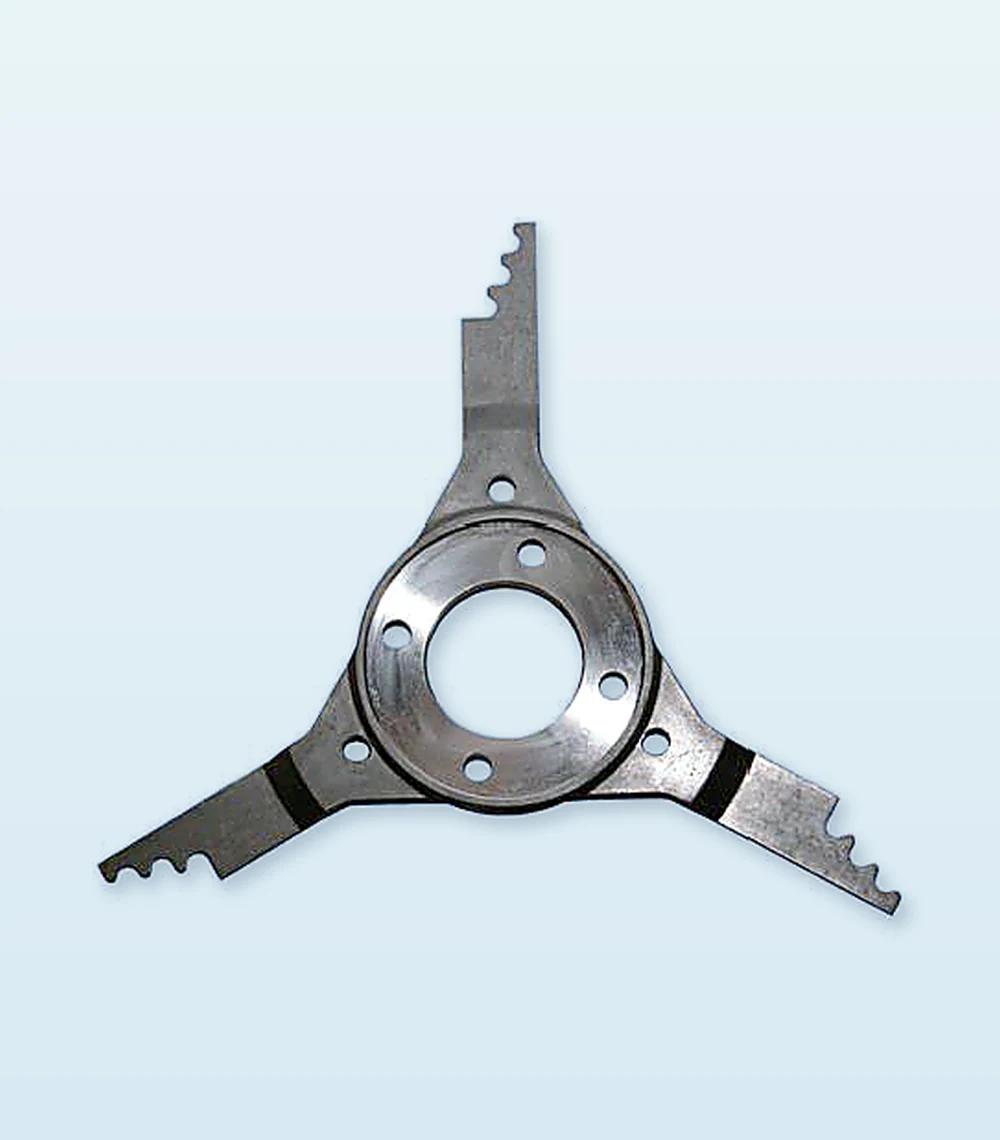

TF-1021

TF-1021

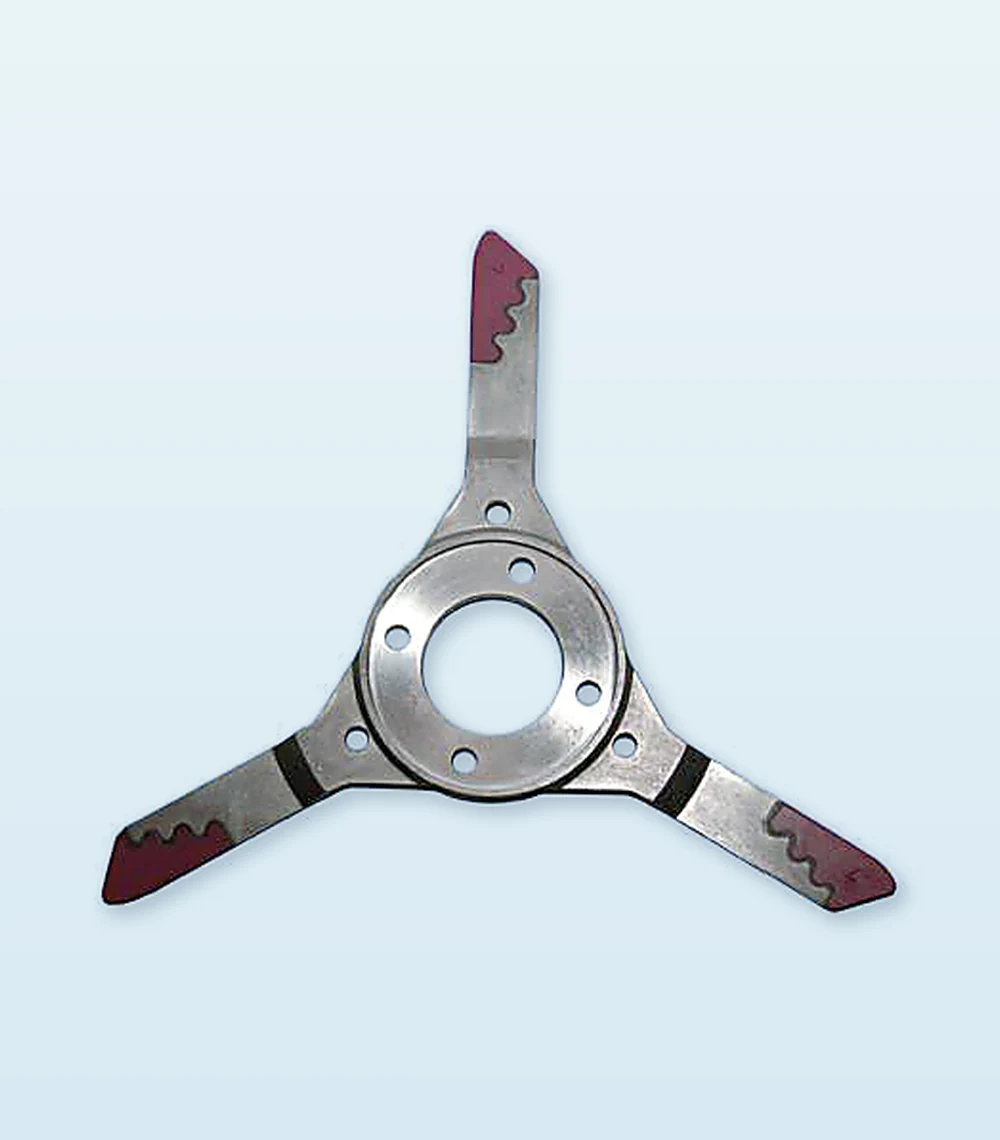

TF-1024

TF-1024

Rotor shape, mounting format and working edge configuration vary by machine position

Bi - Rotor Range

Bi - Rotors - TF1011 to TF1014

Replacement traverse wing assemblies for model and position specific matching.

TF1011 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1011

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

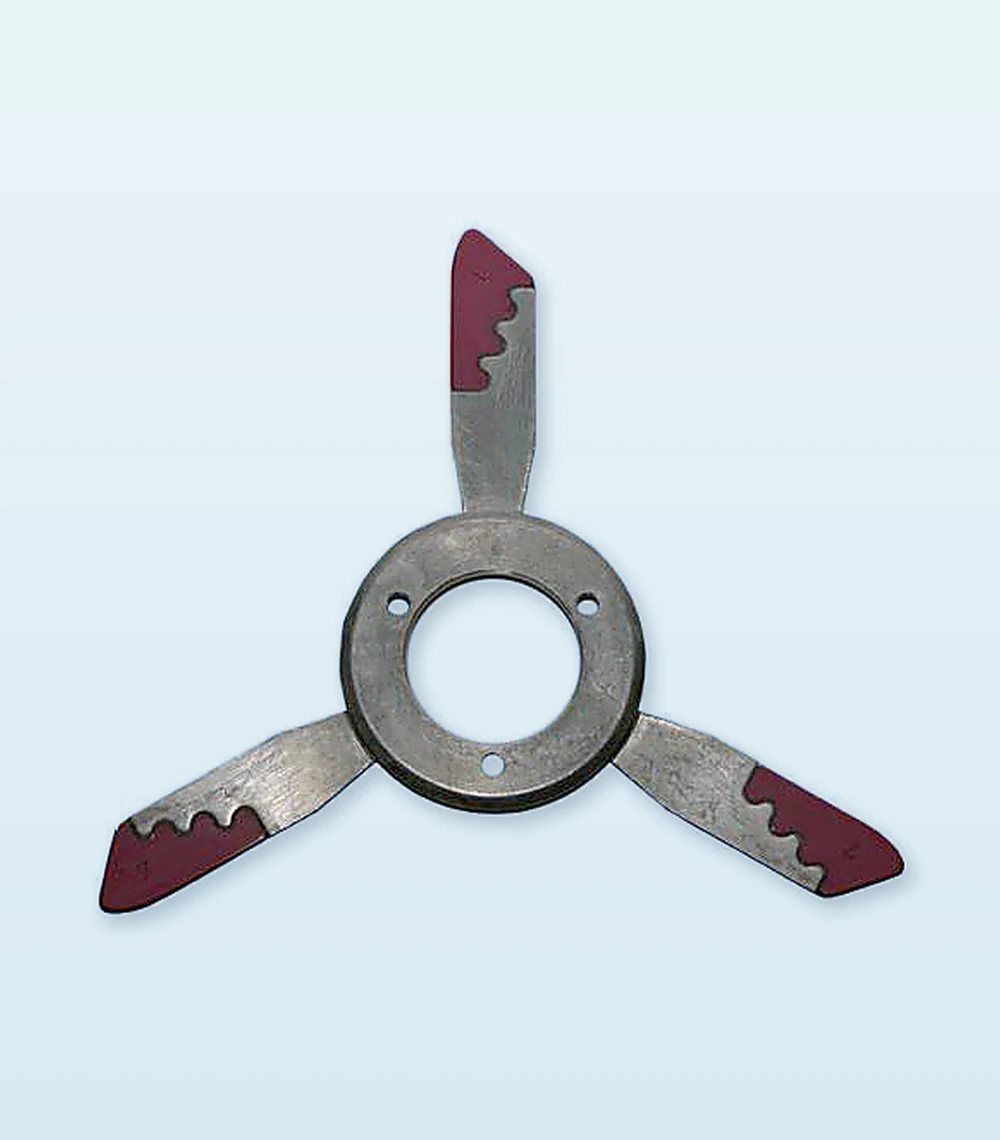

TF1012 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1012

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

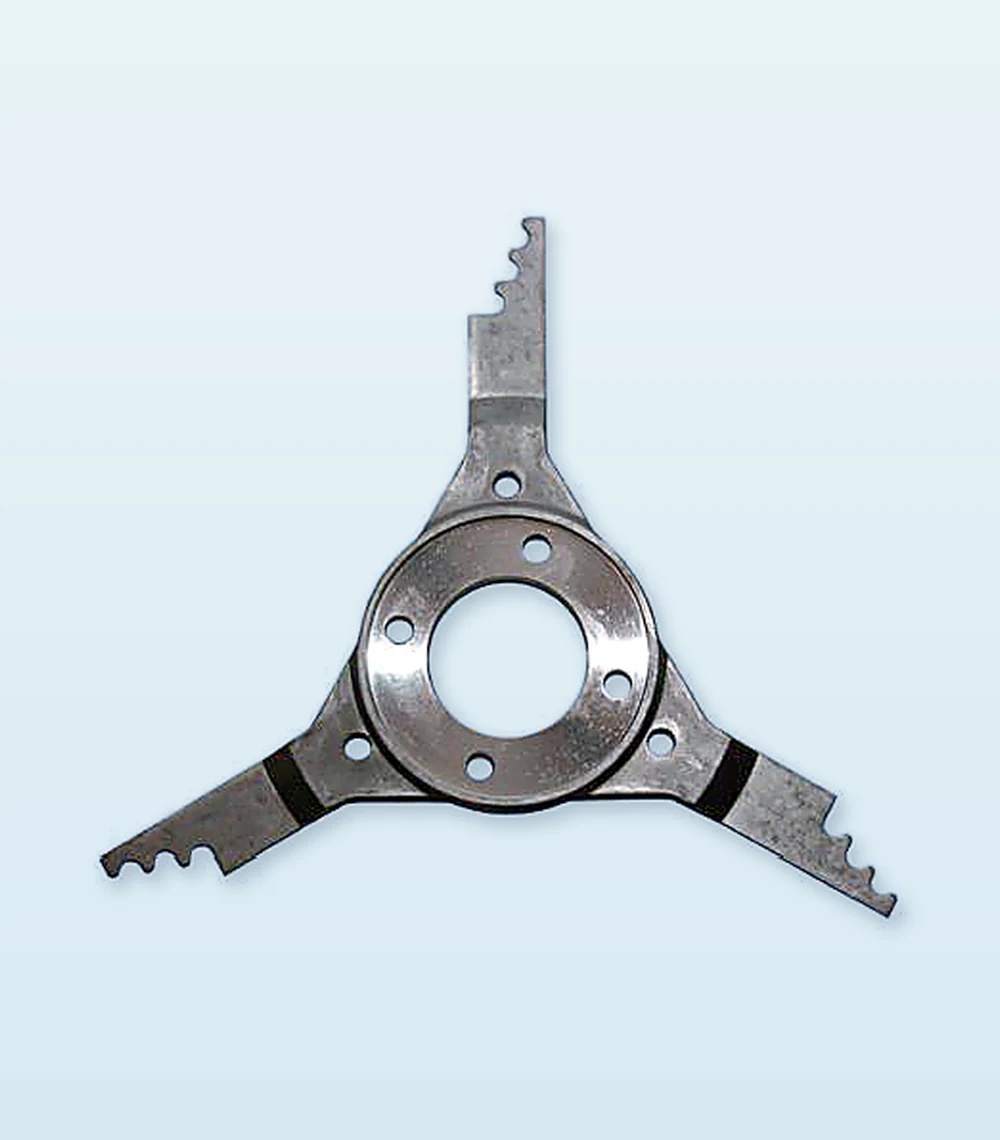

TF1013 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1013

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

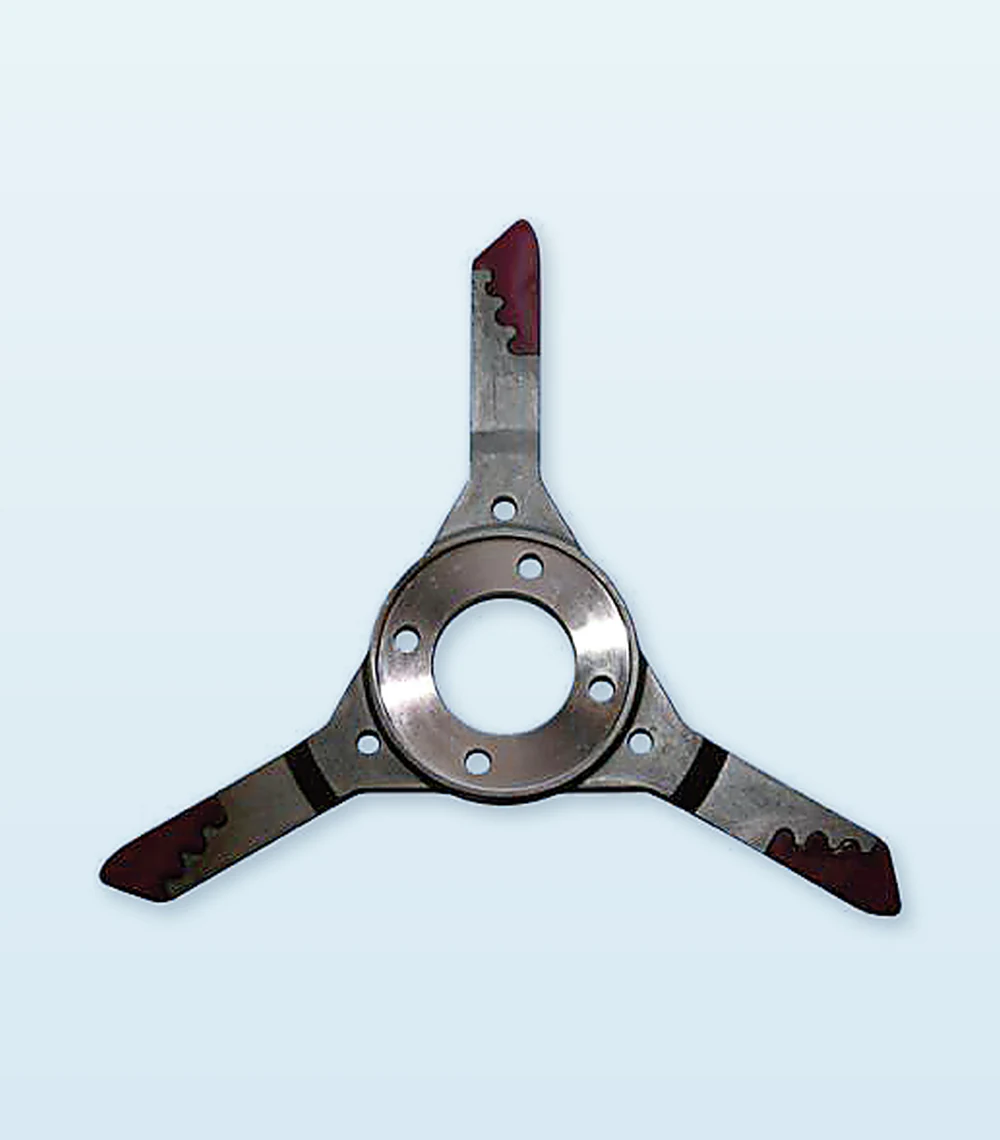

TF1014 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1014

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

Photographs shown for product identification · Confirm direction, mounting geometry and rotor position

Bi - Rotor Range

Bi - Rotors - TF1015 to TF1018

Replacement traverse wing assemblies matched to the machine model and position.

TF1015 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1015

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

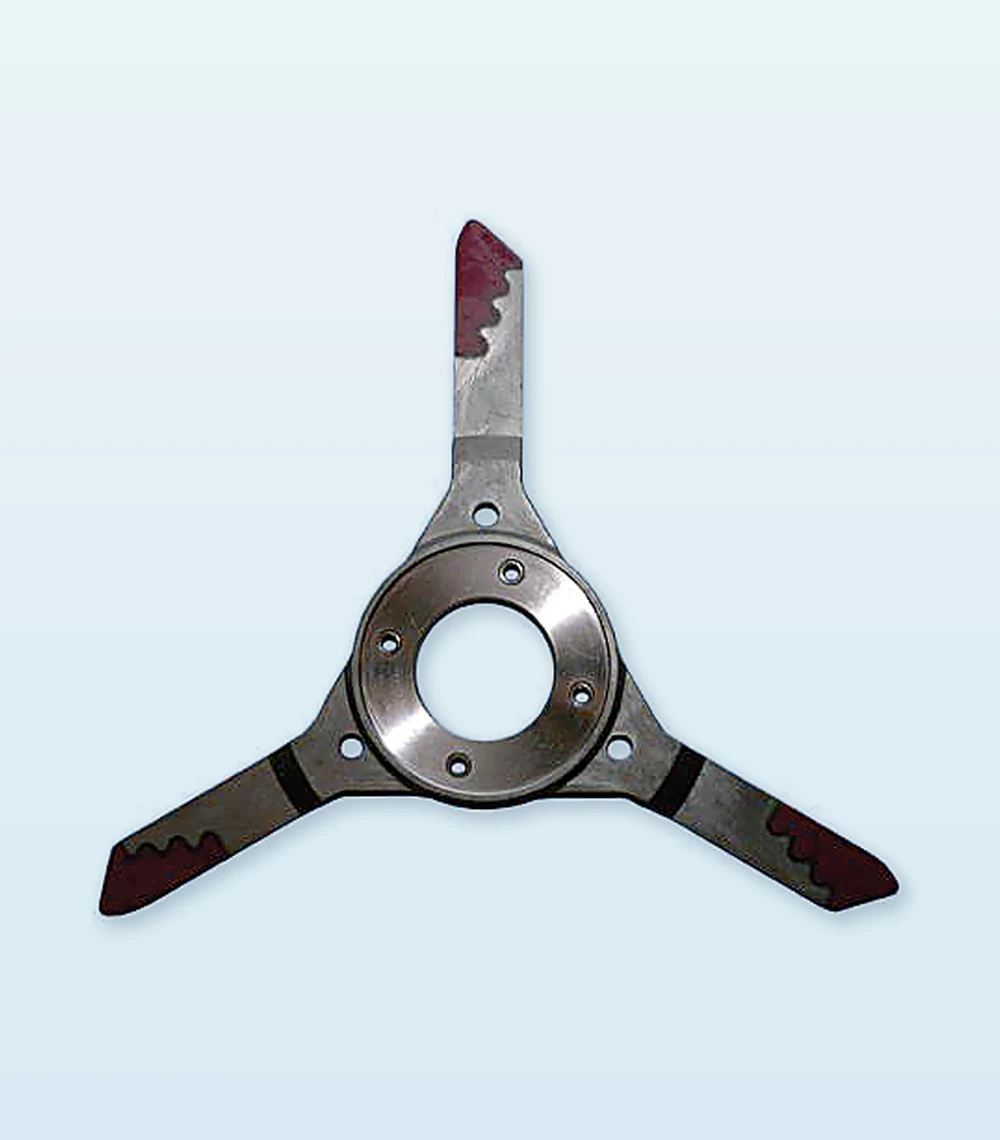

TF1016 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1016

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

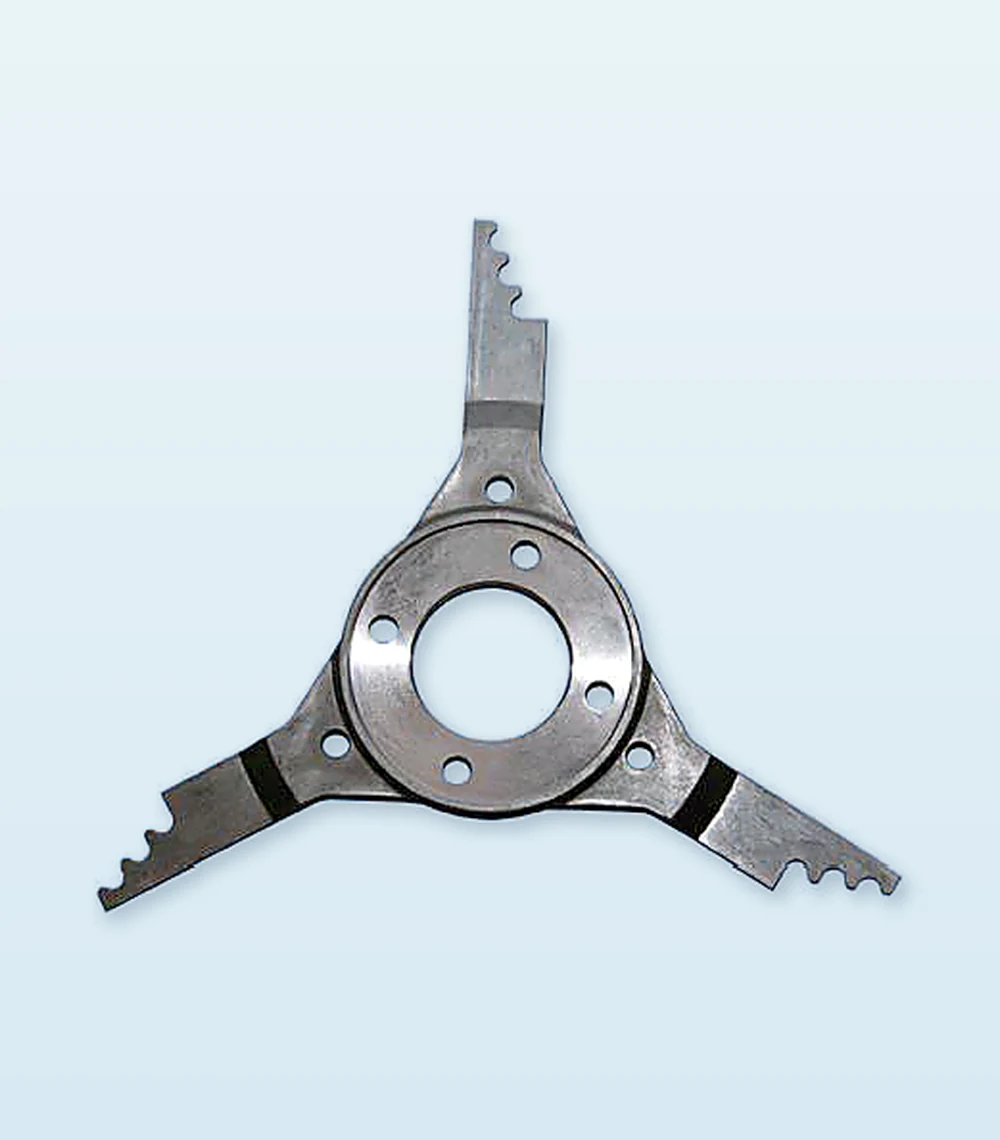

TF1017 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1017

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

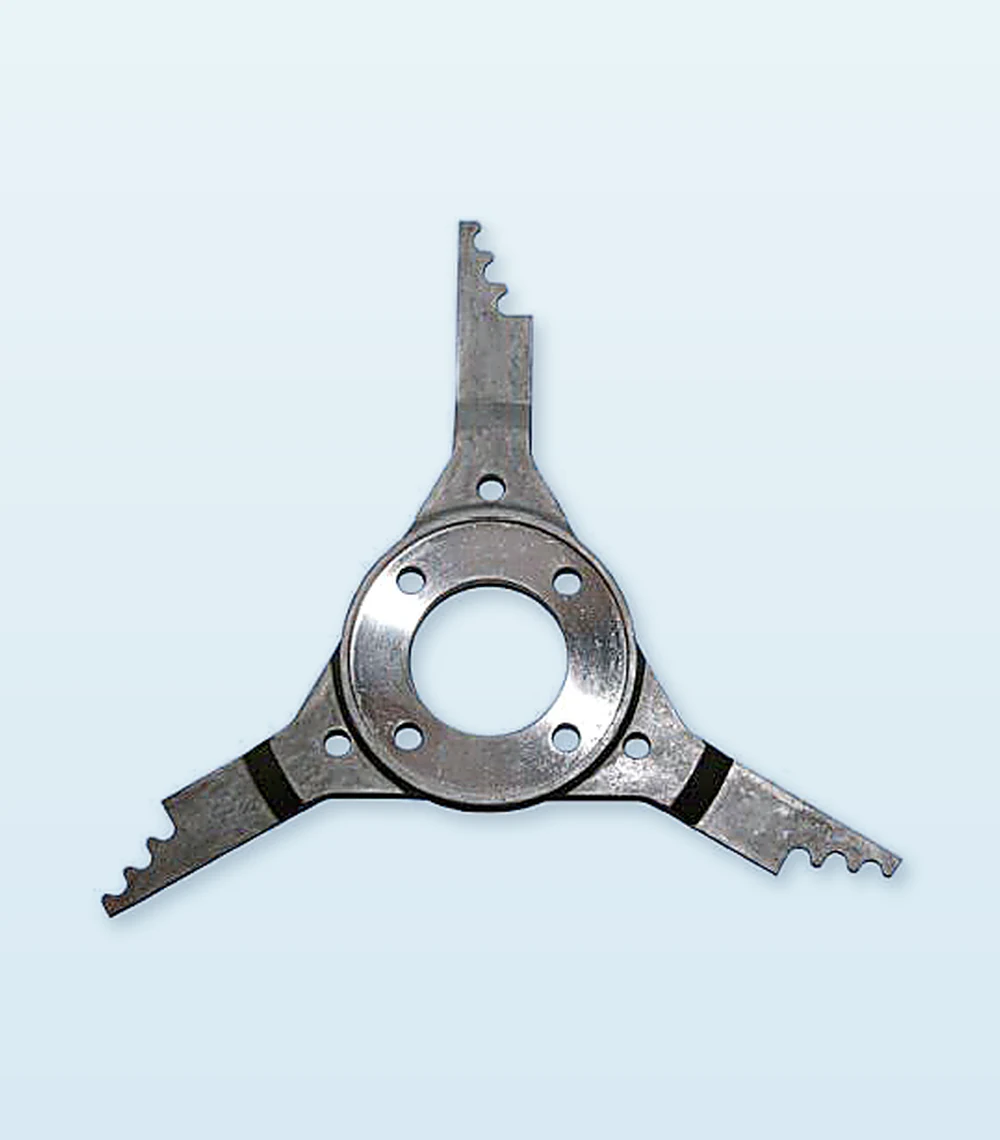

TF1018 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1018

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

Photographs shown for product identification · Confirm direction, mounting geometry and rotor position

Bi - Rotor Range

Bi - Rotors - TF1021 to TF1024

Replacement traverse wing assemblies for model and position specific matching.

TF1021 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1021

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

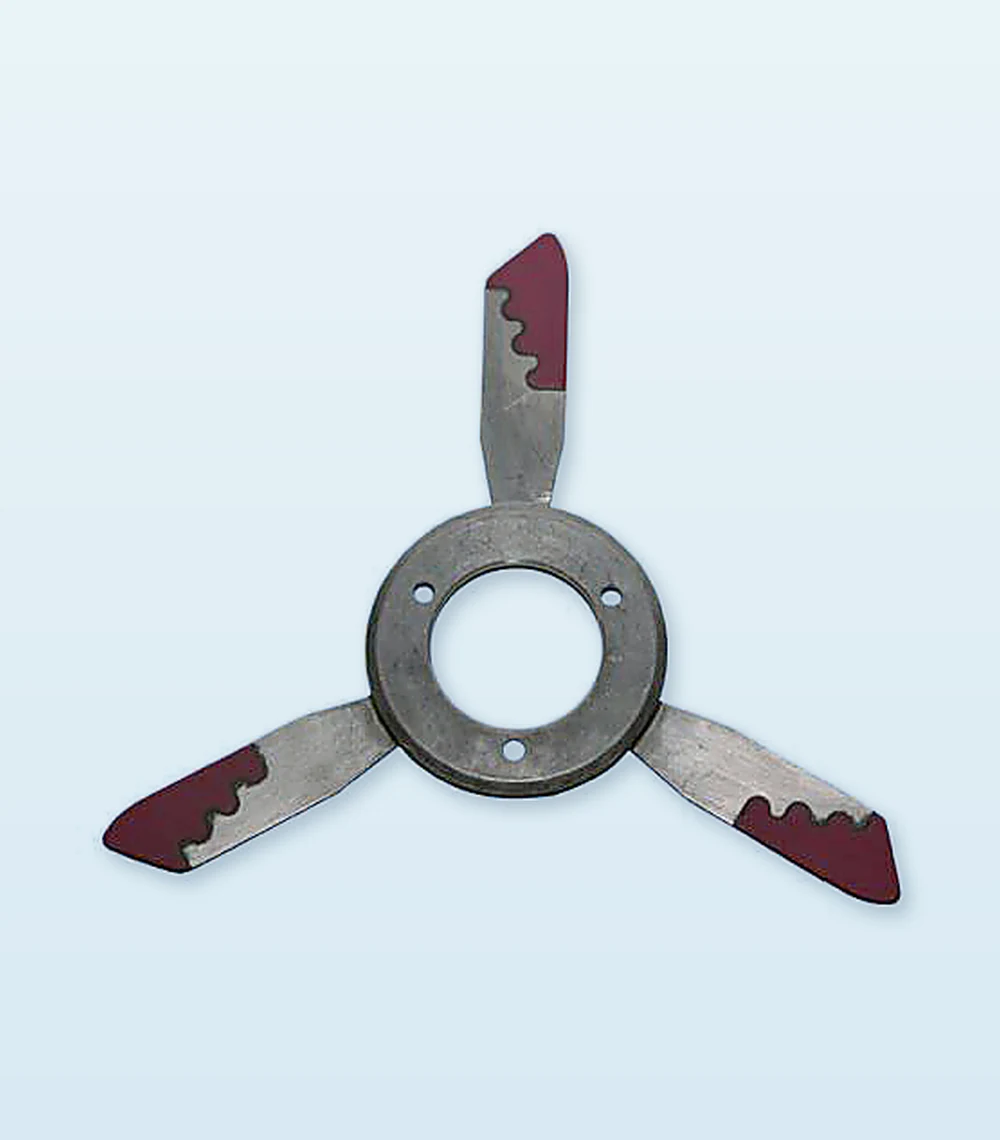

TF1022 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1022

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

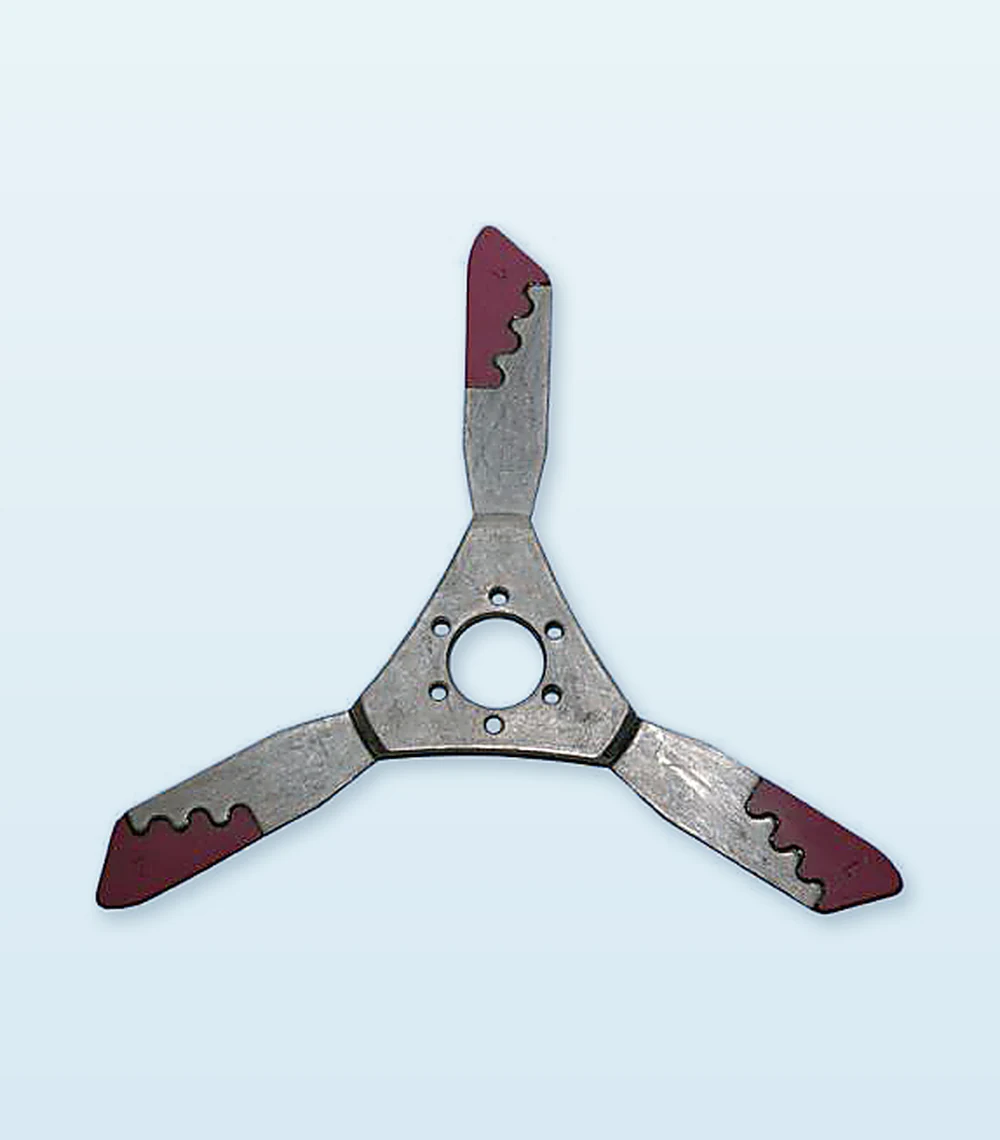

TF1023 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1023

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

TF1024 BI ROTOR WING ASSEMBLY Match rotor position, direction and mounting geometry.

TF1024

Bi Rotor Wing Assembly

Match rotor position, direction and mounting geometry.

Photographs shown for product identification · Confirm direction, mounting geometry and rotor position
